Fabric Chevron Sealing MA2
Fabric chevron sealing set for complicated operating conditions, standard series for pressures up to 350 bar in hydraulic applications.
Application Range
Pressure: ≤ 350 bar
Temperature: -40 °C / +100 °C
Sliding Speed: ≤ 0,5 m/s
Standard Material: NBR/fabric
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter

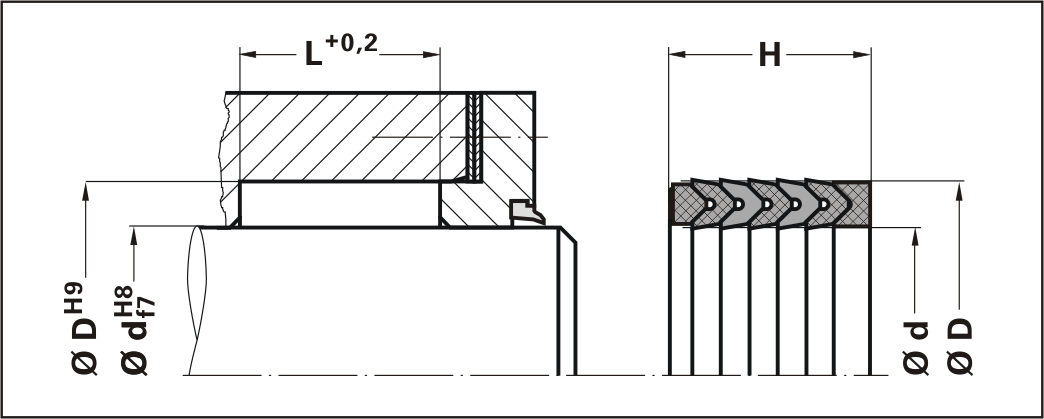

| d [mm] | D [mm] | H [mm] | L [mm] | |
|---|---|---|---|---|
| Min: | ||||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| Profile | d [mm] | D [mm] | H [mm] | L [mm] | Material | Mat. No. | V | Quantity |
|---|
