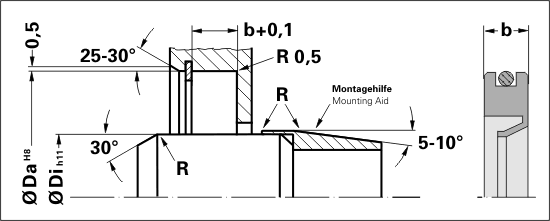

PTFE shaft seal WN7
PTFE shaft seal, with reduced pressing force, well suited for use as protective bearing seal.
Application Range
Pressure: ≤ 1,5 bar
Temperature: -20 °C / +250 °C
Sliding Speed: ≤ 30 m/s
Standard Material: PTFE-comp.
Other materials are available for very high or very low operating temperatures. For detailled information, please look at the specific PDF catalogue or contact our application engineers.
Load product catalog
Are you missing materials or dimensions?
Feel free to contact us!
Our sealing experts will be happy to advise you!
Filter
| Di [mm] | Da [mm] | b [mm] | |
|---|---|---|---|
| Min: | |||
| Max: |
| Material selection | |
|---|---|
| Material: | |
| Material No. |
| Profile | Di [mm] | Da [mm] | b [mm] | Material | Mat. No. | V | Quantity |
|---|
